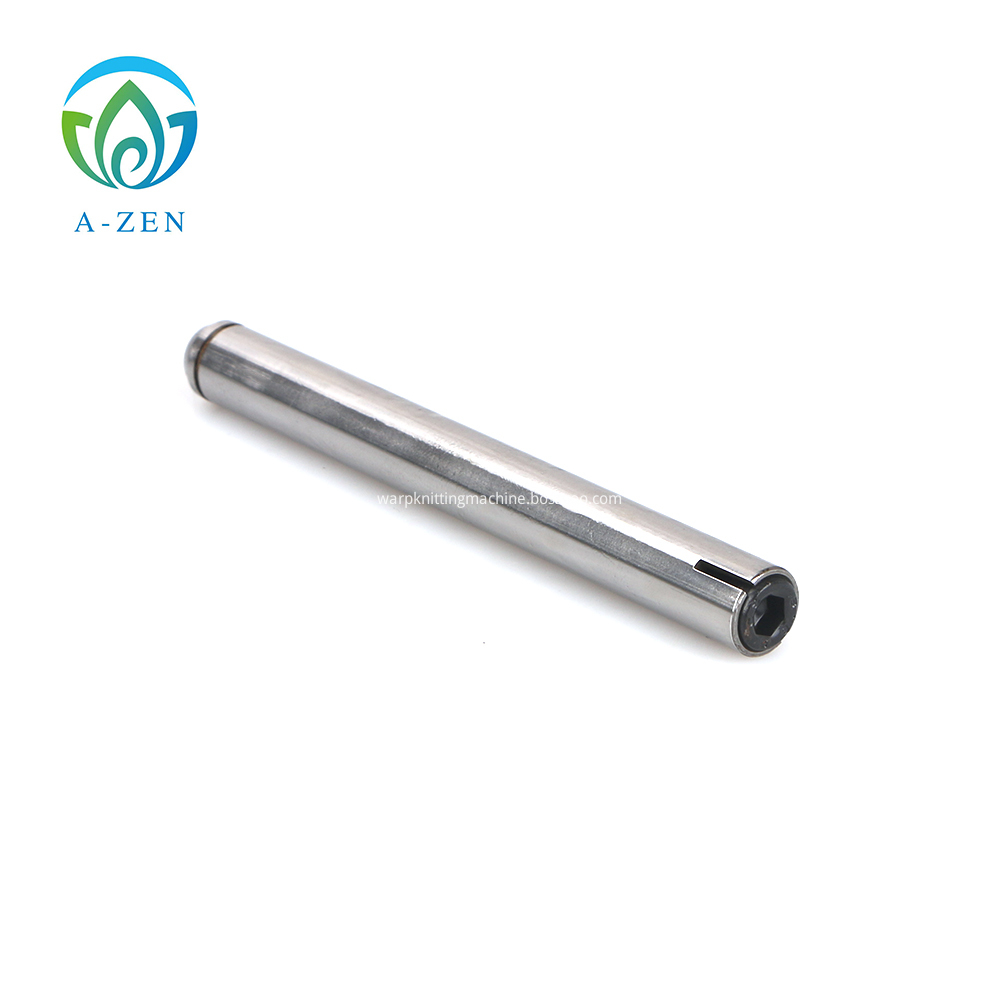

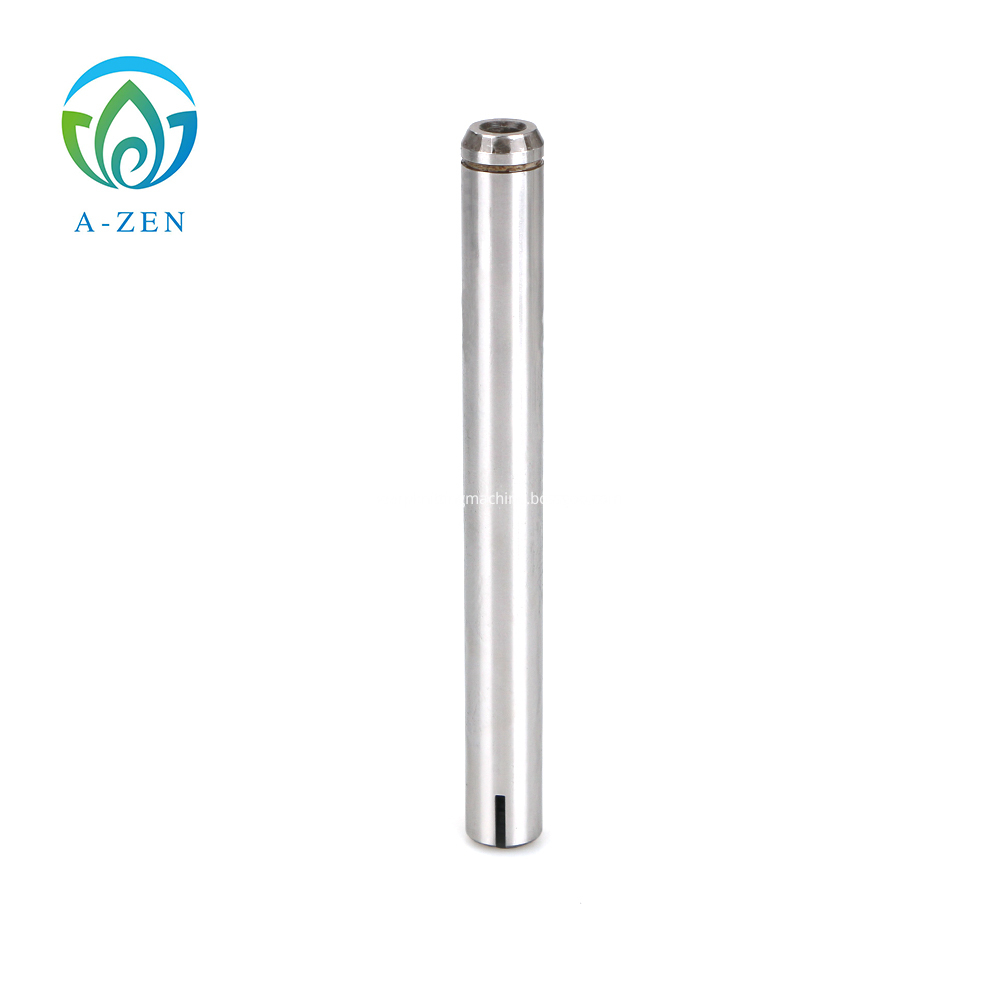

Guide bush for ball bearing warp knitting tube

  • Guide bush for ball bearing warp knitting tube
  • Guide bush for ball bearing warp knitting tube
  • Guide bush for ball bearing warp knitting tube
  • Guide bush for ball bearing warp knitting tube

Guide bush for ball bearing warp knitting tube

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW,CPT,CIP
    Min. Order: 10 Piece/Pieces
    Delivery Time: 5 Days
    Packaging: PLASTIC BOX OR PAPER BOX
    Productivity: 50000PCS/MONTH
    Brand: A-ZEN
    Transportation: Ocean,Air
    Place of Origin: CHINA
    Supply Ability: 50000PCS/MONTH
    HS Code: 844859
    Port: SHANGHAI/CHANGZHOU/NINGBO/GUANGZHOU

Basic Info

Model No.: AZ-BG-01

Product Description

Guide bush for Ball Bearing warp knitting tube

High Quality Warp Knitting Machine Spare Parts Guide bush for ball bearing warp knitting tube

SIZE: 12*53 ;10*50; 10*15*43;

We Could Provide All Kind Size Warp Knitting Machine Ball cage with circlip For Karl Mayer And Liba Warp Knitting Machine.
We Also Provide All Kinds Karl Mayer Warp Knitting And Liba Warp Knititng Machine Spare Parts.


Gauge

Ball Cage02Ball Cage03Ball Cage01

  • Material:
Cage: brass;
Balls: Stainless Steel Ball Bearing steel, hardened.
  • Characteristics:
brass ball cage with steel balls arranged in a spiral form, specially developed for the precision mechanical and optical industry;reduced installation space in combination with guide bushes ;the arrangement of the balls, which are arranged in spiral form, is optimal for linear and rotating movements;the ball chambers are mechanically caulked so that the balls remain captive but still move easily;the balls are arranged in an optimum formation so that each ball can run on its own track for both linear and rotary movements;the ball formation ensures smooth running and substantially lengthens the service life of the rotary stroke bearing;brass offers high mechanical stability, optimum sliding properties, and high resistance to abrasion and heat;for instructions on installation and maintenance, please refer to the appendix;maximum temperature for the cage up to 150°C;F (N) in the table represents the bearing capacity with an even radial load; a load-bearing capacity calculation must be made in the event of momentary action;x in the table represents the number of balls.
  • Special requests:

The ball cages can be supplied with stainless steel or ceramic balls. Other dimensions or designs are available on the basis of workpiece drawings and can be produced using different cage materials.




Product Description



Comb BallComb BallComb BallComb Ball

BALL GAUGE






Copper Alloy Ball Bearing Retainer Rolling Guide Bushing Supporter Brass Steel Ball Cage Miniature Linear Ball Jpg Q50Ball Cage Guide Bush And Pillar 500x500
